Purchasing an Animation Desk or Lightbox



POST UPDATED 08/22/17 -



One of the basic items you need to animate is an animation desk or a lightbox.

There are many different configurations of desks , some of which I have shown in the web album Animation Desks gallery in the sidebar links. You can peruse that album for ideas on how you might set up your own workspace.

There is also a PDF booklet that I have prepared called "Animation Student's Guide to Animation Desks" which may be downloaded by clicking on the link.

While it is possible to purchase or build a large professional studio-style desk such as this example of a Disney Studio desk ---

(click on any of the images to view them larger)


most of use don't have the space or the funds to purchase such a large desk for our home studio. (these desks are wonderful, but take up a lot of space and are very heavy to move).

A good , portable animation desk is the one made by Colin Johnson of Vancouver, BC , available through his web site AnimationDesks.com

This desk is very good value for the money as he includes the white plexiglass animation disc , and a fluorescent backlight unit with the desk itself.

Animator Frans Vischer animating on one of the Colin Johnson desks.

There are similar portable table-top animation desks available from Lightfoot Animation , and ChromaColour U.K.



















 https://www.chromacolour.co.uk/animationsupplies/lightboxes-disks/wooden-portable-lightbox-12ft-disc-pegbar.html

The ChromaColour portable animation desk is a little more lightweight and folds down flatter for storage,  if that matters to you .  Depending on where you live in the world the shipping from the U.K. may make this more expensive than the Colin Johnson Desk.

The Lightfoot portable lightboxes are much more expensive , but they do have a smaller "footprint" (only 24" x 24" compared to 36" x 24" on the Colin Johnson table and  30" x 24" for the ChromaColour table) , so if space is an issue you might want to consider one of the compact Lightfoot Easel Design Animation lightboxes :



 http://www.lightfootltd.com/content/new-led-easel-design-pro



- Another option would be to get Art-O-Graph's rotating lightbox called the "Art-O-Graph Revolution Lightbox" .  It's a rotating disc with LED lights built-in to the metal frame that holds it .  Add a tape-down peg bar  to the disc and it would work fine for animation.    You can hold it in your lap, or resting the edge against a table , or set it on a tabletop with it's edge resting on a stack of books or on a box or something like that  (better to use a portable drawing table like the one shown below)  , so it can be raised up at a slightly higher tilted angle  (I think it comes with a small stand to raise it up to around a 20-degree angle , but I prefer my drawing surface to be at a somewhat steeper angle  ... your preference may be different , but it's good to have options to raise it up higher if need be )  The Artograph Revolution 170 is around $230.00 (as of 08/22/17)   directly from Artograph's eBay store , unless you can find a used one for sale on eBay (from time to time I've seen used ones go for much cheaper on eBay ; I see it listed on Amazon.com for $182  (as of this writing 08/22/17)  ... https://www.amazon.com/Artograph-LightPad-Revolution-170-Light/dp/B008D2UI36/ )


www.amazon.com
Shop Artograph at the Amazon Arts, Crafts & Sewing store. Free Shipping on eligible items. Save on everyday low prices.




There are three sizes:  Artograph Revolution 80,  Artograph Revolution 120 ,  and Artograph Revolution 170.  The small size "80" is much too small for animation drawings , so don't get that one.    The "120" size  is 12.75" diameter which is just barely large enough to comfortably use 12 Field animation paper (but perfect for 10 Field paper) , the "170" model (17.5" diameter)   is large enough to comfortably use 12 Field (or slightly larger)  paper.   I would strongly recommend get the larger 170 size which is 17.5" diameter .    (a standard animation disc like one you'd get from Colin Johnson, ChromaColour, or Lightfoot is between 16" - 18" diameter )

If I were going to use one of these, I'd also get a lightweight portable drawing table/easel to set it on , so it could be tilted up at a higher angle , which for me is much more comfortable to draw.


Something like this:

https://www.amazon.com/US-Art-Supply-Adjustable-Sketching/dp/B01IFVT3L2


www.amazon.com
Shop US Art Supply at the Amazon Arts, Crafts & Sewing store. Free Shipping on eligible items. Save on everyday low prices.
So that would be between $182 - $230 for the Artograph Revolution 170 lightbox, depending on where you buy it from , and another $30- $40 for the portable drawing board to set it on , plus the tape-down peg bar for $25.00,   which comes to around  $237 - $285  (not including shipping) , so it would be somewhat less than the Colin Johnson desk or the ChromaColour desk.

---------
A more compact , less expensive option would be to use a simple lightbox with a fixed animation pegbar (no rotating disc).

Lightfoot Animation sells the Artograph LightTracer II 12 Field lightbox (12" x 18") with an Acme peg bar pre-installed for about $119.00


Some online art dealers such as Dick Blick Art have these Artograph LightTracer II lightboxes for less , so keep your eyes open . Dick Blick currently sells the 12" x 18" model for only $86.24 (compared to list price of $129.00) . Add a thin tape-down Acme peg bar from Lightfoot for $25.00 and you'll have a functional animation lightbox.   This will work, but the disadvantage is it doesn't rotate , so you can't turn your drawing to the most comfortable angle to draw from like you can with a disc.

Cartoon Colour Co. also sells a similar Light Box (with larger work surface of 18 1/2" x 15 1/4" ) for $145.00.




Traditional Drafting Table adapted to Animation Table:

A step-up from a portable table-top animation desk would be to have a hole cut into a standard wooden drafting table so you can mount an animation disc on it , with a backlight unit mounted underneath. What you would give up in terms of portability and compactness you would gain in flexibility and comfort. A drafting table can be adjusted in both height and the angle of the tabletop for the maximum in drawing comfort. You can adjust the table to whatever angle is best for you. If you have the space this is really the best option for a traditional animation set up.

The Alvin Pavilion model , 42" x 31" or 36" x 24" , is a good basic drawing table. These tables are available from Utrecht.com or other art suppliers.



If you have the proper tools to make a precision cut 16 1/2" hole in the table top then you could cut the hole yourself , or hire a local woodworker who has the proper tools to make the cut for you . You may have a friend or family member who has the proper tools to do this. Be very careful when cutting the hole. It must be smooth and perfectly round so the disc will turn smoothly.

You can purchase a table like this with the hole pre-cut from Cartoon Colour Co.  for about $240.00 . The animation disc and backlight unit is sold separately.

























Besides being able to fine-tune the height and angle of the drafting table it also gives you more space to pin up notes, model sheets, and X-sheets , especially if you use an extension panel as shown below. (the extension panel may also be used on the Colin Johnson desk to add space to clip on an X-sheet to the right or left side of the table.)

(click any image to view it larger)


(notice most of the artists have a corkboard on the
wall in front of their desks to pin up model sheets and
other notes)






If you have the extra space an over-size table top gives even more space to pin up your model sheets and other notes as shown below:



You will also find it useful to surround your drawing space with a folding table, shelves ("scene stackers") and/ or some sort of side-table unit to have a place to stack your drawings , blank paper, pencils, and other supplies, to keep them organized and close at hand.

Notice the tall scene-stacker to the right of this animator's work space. The drawings from various scenes can be kept organized in a shelving unit such as the one shown below:

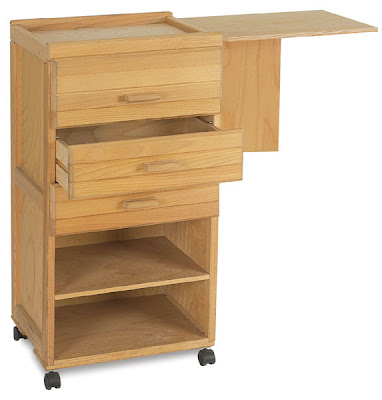

This Winsor-Newton artist's tabouret shown below makes a good compact side-table unit for an animation desk. Paper can be stored in the lower shelves, while the interior drawers can be used to store pencils, erasers, peg hole reinforcements , and other supplies.



Here is another view of a typical animation scene stacker unit filled with animation drawings bound between chipboard panels and rubber-banded around the outside to protect the drawings and keep everything neatly organized. Below is a shorter scene stacker unit:



Anyone looking for ready-made Scene Stackers (for 12 field animation paper) take a look at these cube stackers available from Target:

Cube Shelf Stackers
There are other similar stacking shelf units available from different office supply and home decor stores.

The one linked to above is 15" x 15" , which is big enough for 12 field paper (12.5" x 10.5") , not quite big enough for 16 field paper (16.5" x 13.5" ) . Most people use 12 field so that's no big deal. But if you expect to use 16 field you'll need to find slightly wider shelves.

These (also from Target) are wider and you could add multiple shelves to it:

Another "Scene Stacker" available from Target


Scene stackers might not be the most glamourous item on your equipment list , but you'll be surprised how handy these are for storing and keeping track of your animation drawings.

An inexpensive , functional scene stacker can be made from large size stacking file crates available from various office supply stores:



This economical file crate scene stacker could be further sub-divided into individual shelving compartments using sturdy cardboard or lightweight masonite panels held in place with wire or glued in place.
